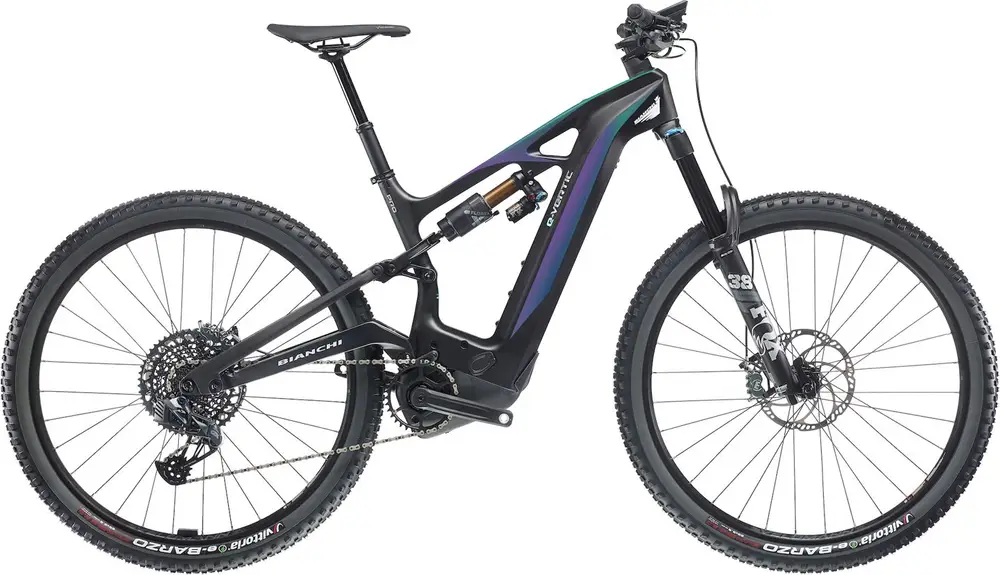

2023 Bianchi e-Vertic FX-Type Pro – NX/GX A 29″ carbon frame full suspension enduro e-bike with high-end components.
Build
| Frame | e-VERTIC FX-Type Pro FULL SUSPENDED CARBON sizes: 430-480-530 – 160 mm front travel – 160 mm rear travel – HT 1,5″” tapered – Seatpost 31,6 mm – 12×148 mm dropouts – Set dropout (sx+dx) TA 148mm external derailleur + SRAM UDH Color: Xv – Iridescent Green / Anthracite |
|---|---|
| Fork | Rock Shox ZEB 29″B DebonAir, 160mm, Extl rebnd, Rush RC Damper, 15×110 BOOST, 38mm stanchions, PM 200mm disc mount, Maxle Ultimate, 44mm offset |
| Rear Shock | Rock Shox Deluxe Select +, 230/65, DebonAir Linear, Damer Type RT, Compression Tune L1, Lockout Force 380, Shaft 25×8, external rebound adjustment, Volume reducer 0 Neg 0 Pos |
| Bottom Bracket | included in the motor |
| Headset | Acros 1″”1/8 top / 1,5″” bottom – bearings Starnut, Alloy Topcap |
| Stem | Velomann, 50 mm, 35 mm, 1″1/8 |
| Handlebar | Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9° |
| Saddle | Velomann, manganese rail, lenght 277mm x width 144mm |
| Seatpost | Alpha1 Series – 31.6 mm – Remote RM07 I-Spec EV – 1800 mm cable length – Velomann logo 125 mm – for size M 150 mm – for size L/XL |
| Grips | T-One Rock T-GP34 single lock grip, TPR |
Groupset
| Rear Derailleur | SRAM RD GX EAGLE LUNAR |
|---|---|
| Crank | FSA Direct Mount Steel Chainring – 34T / w/HT Steel / ED / C.L. 52mm / SH12 CK-320 FSA E-Bike Diecast Crankset – ISIS / 165mm / Die cast aluminum / w/o crank bolt |
| Shifters | SRAM SL NX MMX EAGLE |
| Chain | SRAM CN GX EAGLE 126LI PWR.LCK 12sp |
| Brakes | MT Thirty (front banjo 4 piston caliper/ rear 0° 2 piston caliper) Magura Shiftmix 4 for left-front, I Spec-EV compatible Magura Shiftmix 3 for right-rear Adaptor QM44 (180 – 203) |
Wheels
| Rims | Velomann 2.0 29”, 30mm 29”, Pre Ano Black, 489g, 32 hole drilling, Disc Only, PV drilled Sleeved Joint |
|---|---|
| Rear Hub | Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, FOR SRAM XD DRIVER 11-SPEED, 4 SB, 32h |
| Tires | Vittoria e-Barzo 29×2.6 XC-Trail |
| Disk Rotors | MDR-C Centerlock – 203 mm |
Electric Components
| Motor | Bosch Performance Line CX Smart System |
|---|---|
| Battery | Bosch Powertube 750wh integrated battery, w/Kiox display |
