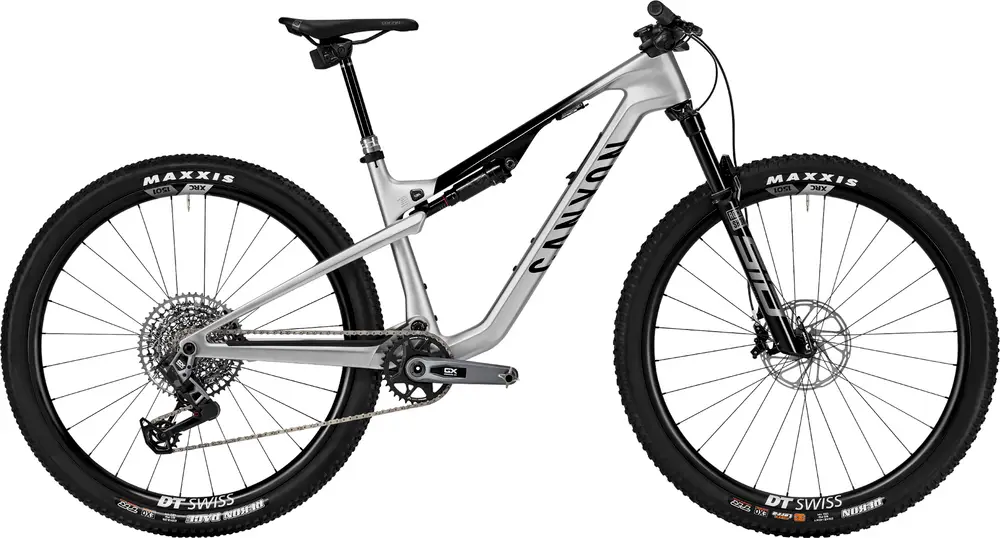

Canyon Lux Trail CF 9 2024 Overview
Build
| Frame | Canyon Lux Trail CF, A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Colors: Chrome Level 1; Mirage Blue |
|---|---|
| Fork | Rock Shox SID Select+ Remote, Axle dimension: 15×110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Weight: 3.44 lbs Travel: 120mm |
| Shock | Rock Shox SIDLuxe Select+ Remote Travel: 115mm |
| Bottom Bracket | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 0.17 lbs |
| Stem | Race Face Ride, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar | Race Face Ride Riserbar, Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 10 mm |
| Saddle | Ergon SM10 Pro, Gender: Male, Weight: 0.60 lbs |
| Seatpost | Rock Shox Reverb AXS, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 1.57 lbs Type: Dropper |
| Pedals | None included |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS Transmission, Weight: 1.02 lbs |
|---|---|
| Crank | SRAM GX Eagle, Number of chainrings: 1 |
| Shifters | SRAM AXS Pod, Weight: 0.15 lbs | SRAM AXS POD Bridge |
| Cassette | SRAM XS-1275 Eagle Transmission, Number of sprockets: 12, Range: 10-52 |
| Chain | SRAM GX Eagle Transmission |
| Brakes | SRAM Level Silver Stealth 4 Piston, Number of pistons: 4 | SRAM Level Silver Stealth 2 Piston, Number of pistons: 2 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss XRC 1501 Spline S12, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 1.61 lbs | DT Swiss XRC 1501 Spline S12, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 1.80 lbs |
|---|---|
| Tires | Maxxis Rekon 3C Exo 2.4, Width: 2.4″ | Maxxis Rekon Race Dual Exo 2.35, Width: 2.35″ |
| Disc Rotors | SRAM Centerline Rounded, Size: 160 mm, Weight: 0.25 lbs | SRAM Centerline Rounded, Size: 180 mm, Weight: 0.37 lbs |
