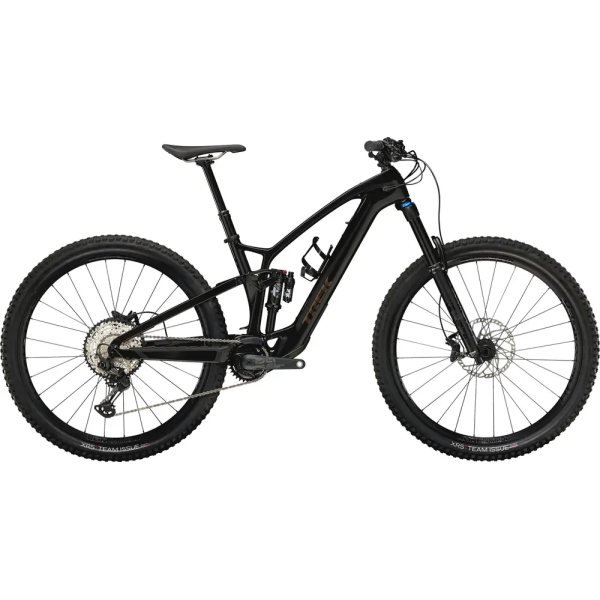

2023 Trek Fuel EXe 9.5 A 29″ carbon frame full suspension trail e-bike with upper mid-range components.
Build
| Frame |
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel Colors: Matte Dnister Black; Hex Blue |
|---|---|
| Fork |
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Rear Shock |
RockShox Deluxe Select+ RT, 205mm x 60mm |
| Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar |
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Arvada, steel rails, 138mm width |
| Seatpost |
Size: S, TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length; Size: M, TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length; Size: L, XL, TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano Deore M6100, long cage |
|---|---|
| Crank |
E*thirteen E*spec, 32T alloy ring, 55mm chainline |
| Shifters |
Shimano Deore M6100, 12 speed |
| Cassette |
Shimano Deore M6100, 10-51, 12 speed |
| Chain |
Shimano Deore M6100, 12 speed |
| Brakes |
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper |
Wheels
| Rims |
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
|---|---|
| Front Hub |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
| Tires |
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50” |
| Disk Rotors |
Shimano RT66, 6-bolt, 203mm |
Electric Components
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
| Motor |
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
|---|---|
| Battery |
TQ 360Wh |
