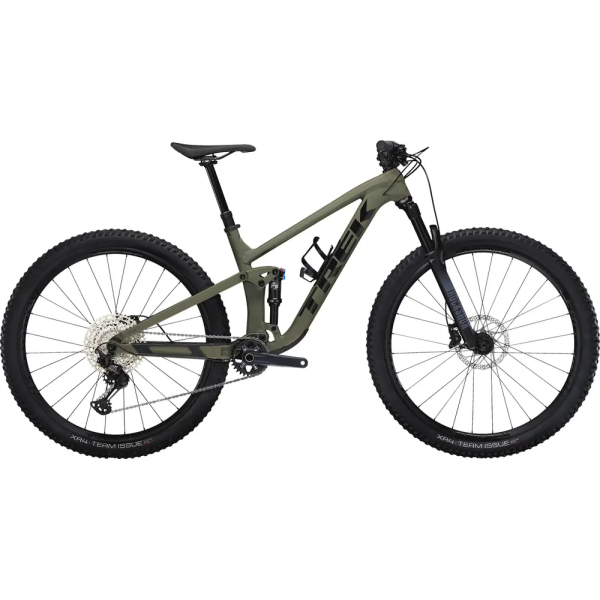

2022 Trek Top Fuel 7 A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Build
| Frame |
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel Colors: Deep Smoke; Mulsanne Blue; Baja Yellow |
|---|---|
| Fork |
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel |
| Rear Shock |
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm |
| Saddle |
Bontrager Arvada Pro, carbon rails, 138mm width |
| Seatpost |
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length |
| Grips |
Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
|---|---|
| Crank |
E*thirteen E*spec, 32T alloy ring, 55mm chainline |
| Shifters |
Shimano XTR M9100, 12 speed |
| Cassette |
Shimano XTR M9101, 10-51, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano XTR M9120 4-piston hydraulic disc |
Wheels
| Rims |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready |
|---|---|
| Tires |
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disk Rotors |
Size: S, M, L, XL, Shimano RT86, 6-bolt, 180mm; Size: S, M, L, XL, Shimano RT86, 6-bolt, 203mm |
Electric Components
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
| Motor |
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
|---|---|
| Battery |
|
